Precision Mold Manufacturing Equipment
Advanced CNC machining, EDM, and tooling equipment built to deliver high-precision injection molds with dependable quality and fast turnaround times.
Personnel
- 16 Moldmakers (5 are Seasoned Welders)
- 5 Machinists
- 3 Truckdrivers
- 1 Engineer/Programmer (various downloading capabilities including IGES)
- 2 Estimators/Salesmen
- 4 Office Personnel
Engineering Software
- Mastercam XT:
- Extensions: MCX / MX9 / MC8 / IGS / IGES / DWG / DXF / STP / STEP / 3DM / SLDPRT / IPT / TXT / CDL
Machines
- 2026 - Johnford DMC-1500H X=63" Y=33-1/2" Z=30-1/2"
- 2019 - Accutex DS-430S ZNC EDM Die Sinker with Orbiting Cut COC-280
- 2019 - Jet GH-1440zx, 3-1/8” Spindle Bore Geared Head Lathe
- 2019 - Jet JTM-1050EVS2/230 Mill with Newall DP700 DRO w/X-axis Powerfeed & Air Powered Drawbar
- 2016 - Johnsford X=122” Y=71” Z=30.5” 6000 RPM CA50 TAPER
- 2017 - Miltronics RH33 X=78” Y=33” Z=2 8000 RPM CAT 40 TAPER
- 2017 - Miltronics VM4020 X=40” Y=20” Z=20” 8000 RPM CAT 40 TAPER
- (1) - ACER Ultima Mill-16”x33”
- Topper TMV - 510 - II 14"x23-1/2"
- (1) - ERM E.D.M. With Xermac 120amp Power Supply - 22”x24”x42”
- (1) - Precision Bridge type E.D.M. 120amp Power Supply - 48”x48”x108”
- (1) - Westhoff Electrode Drill
- (1) - Giddings & Lewis 12"x36" Horizontal/ Boring Mill X=113" Y=60" Z=114"

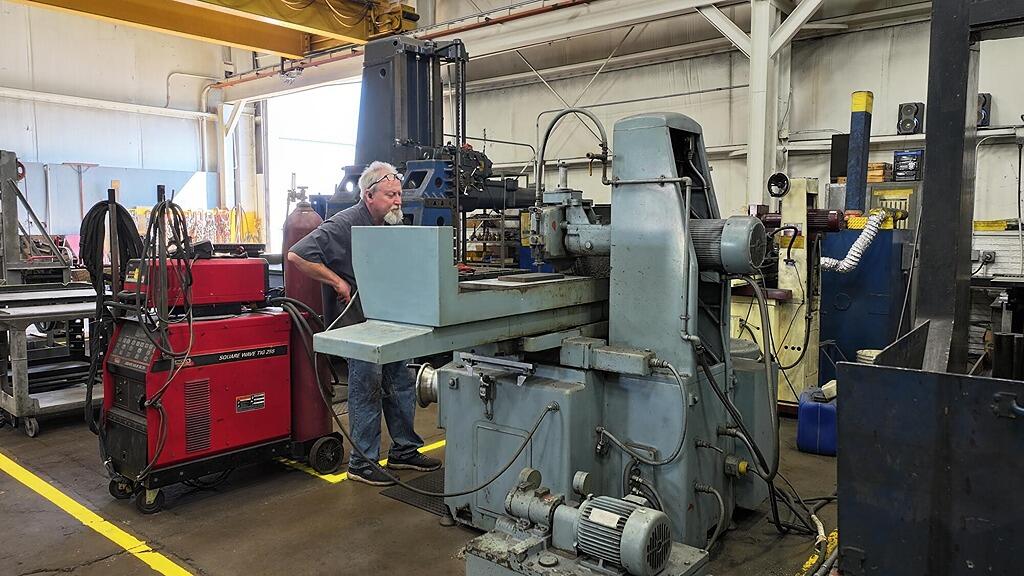

- (1) - 6”x18” ACER Surface Grinder Supra - 618
- (1) - Kent - Surface Grind SG5 - 816MR X=16" Y=8"
- (1) - Johnson Power Hack Saw
- (1) - 8”x12” Electrode Band Saw
- (2) - Thermal Care Oil & Water Mold Heaters
- (1) - Rockwell Tester
- (1) - Portable Hardness Tester
- (1) - Limenator Descaler

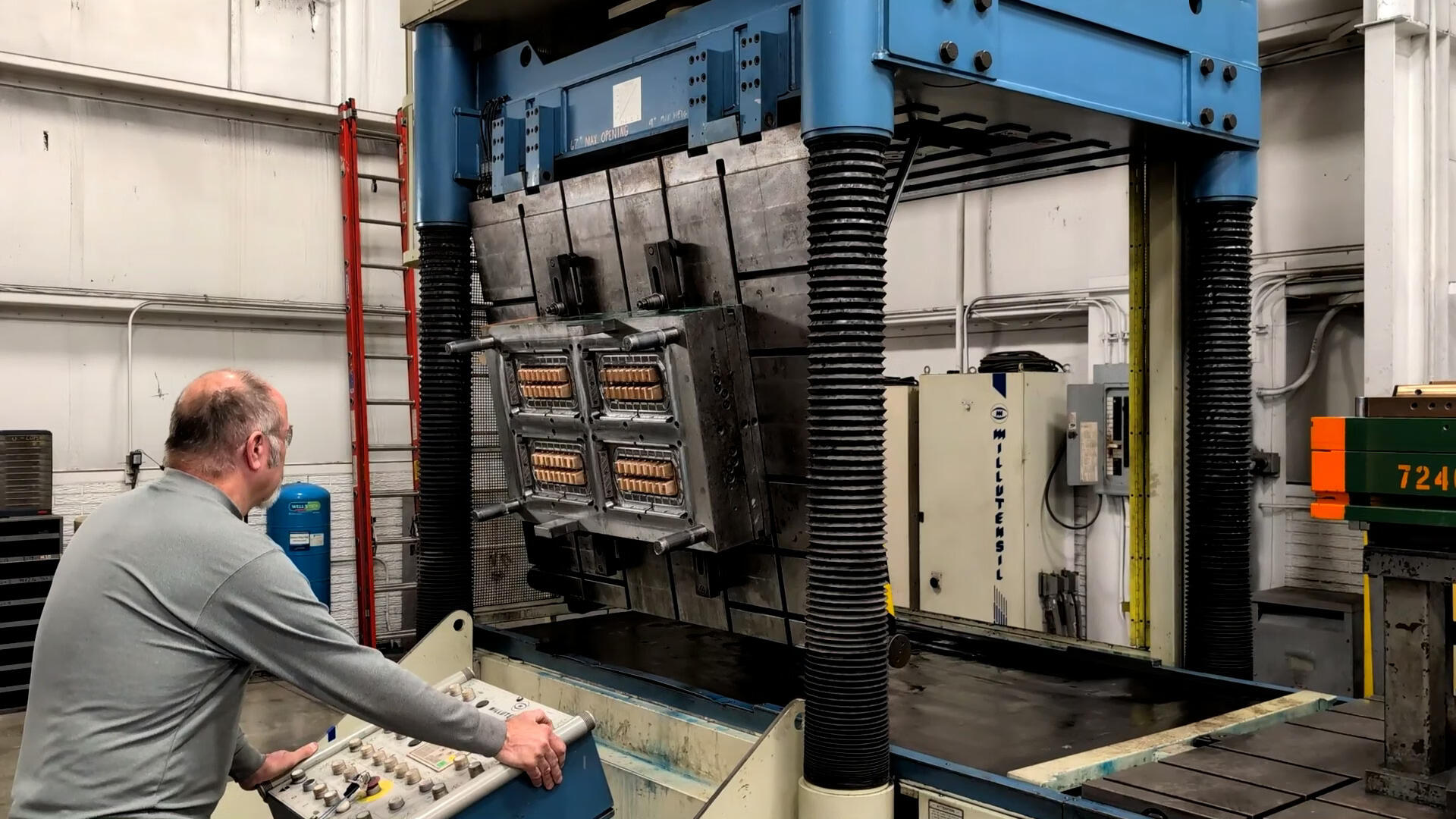

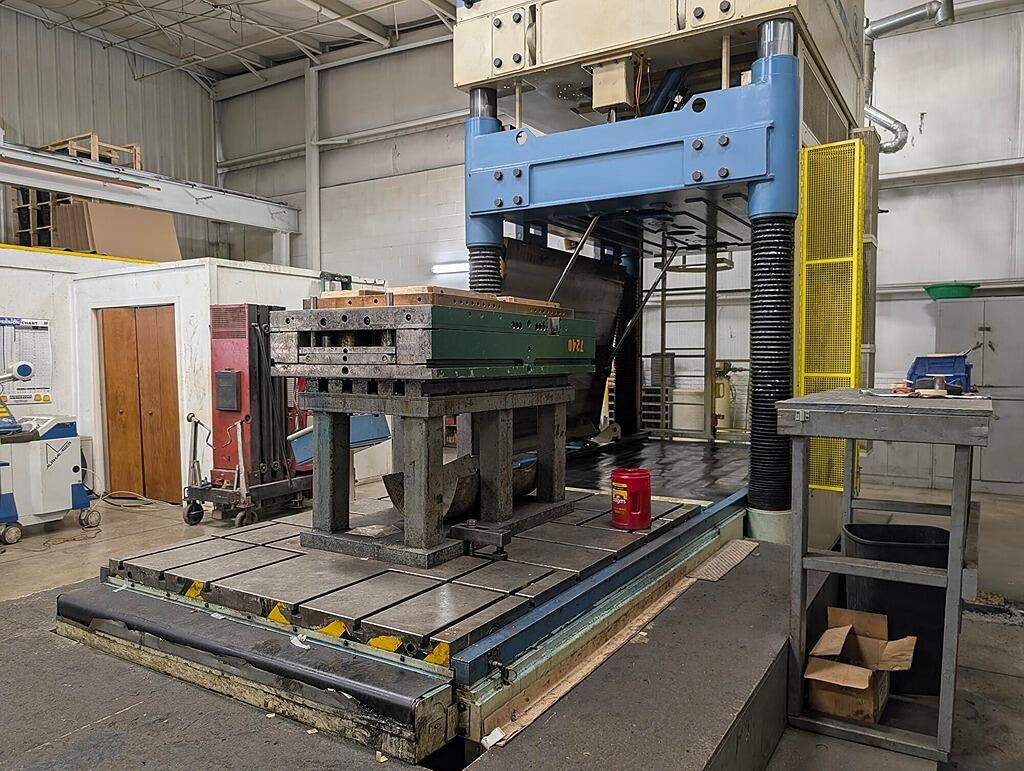

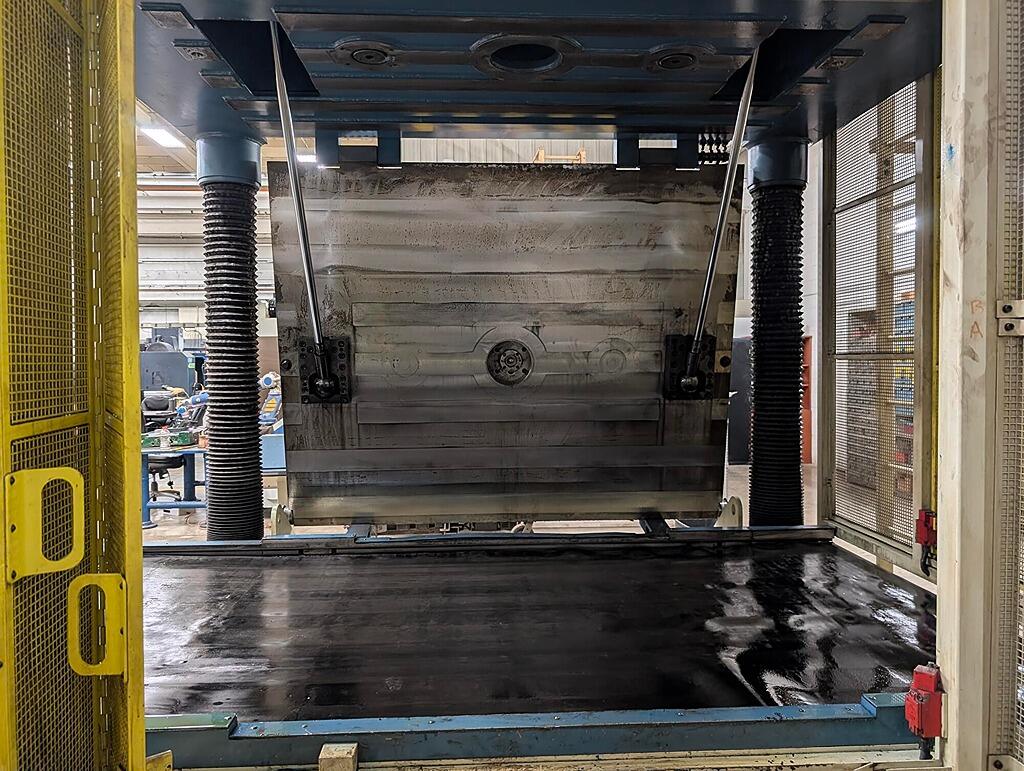

Spotting Presses
- (1) - Newman 250 - 96"x120"x84" Daylight

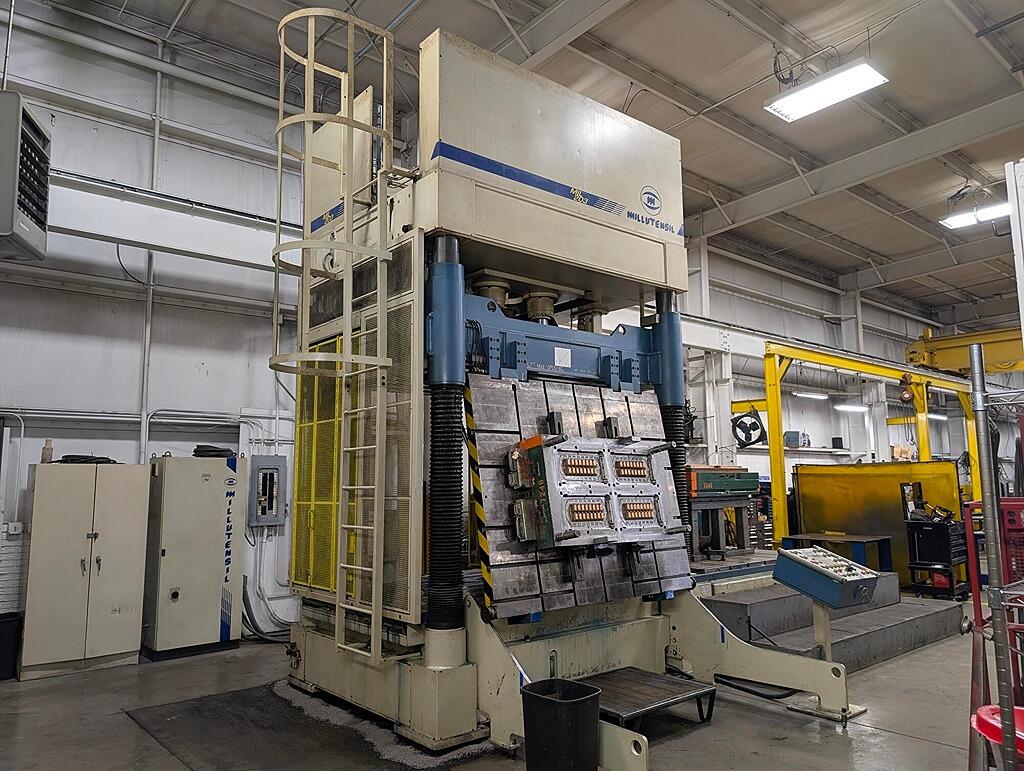

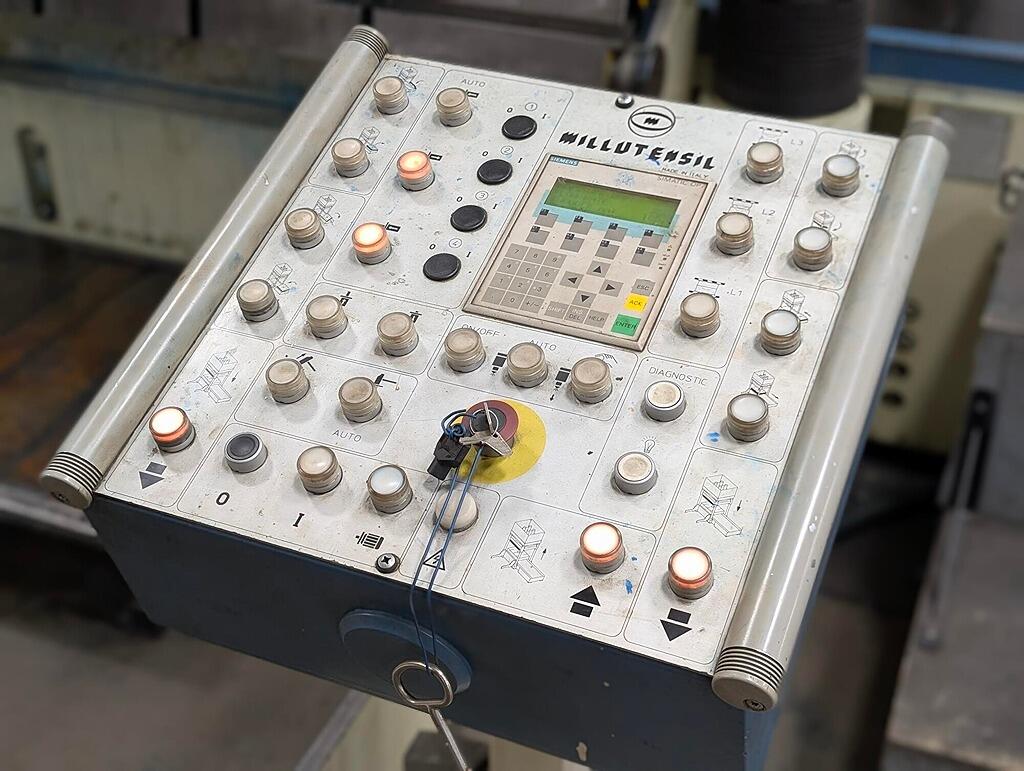

- (1) - B.V. Millintensil - 44”x58” with upper swing out platen
- (1) - Inter-Continental 86-487260-04 Job - 177 X=72" Y=48" Z=58" Daylight
Welding Equipment
- (1) - Miller Syncrowave 350 MIG/TIG
- (1) - Lincoln Square wave TIG 255
- (2) - Miller Syncrowave MIG/TIG 250DX
- (5) - Miller Dynasty 200 Portable
- Miller Millermatic 212 MIG
- Miller Syncrowave 200 TIG
Bead Room
- (1) -14’x14’ Bead Room: Glass, sand and Tri-Mix Blast
- (1) 2017 - UP6-50PE Rotary Screw Air Compressor
- (1) 2013 - UP6-50PE Rotary Screw Air Compressor
Lifting Equipment
- (2) - 20 Ton Running Bridge Crane with a 10 Ton Slave Crane
- (1) - 10 Ton Running Bridge Crane
- (2) - 10 Ton Monorail Cranes
- (5) - 1 Ton Jib Cranes
- (1) - 10,000# Tow motor
Finishing Equipment
- Each Mold Maker has the power to bring finishes to a #1 Finish
- (5) - Fully Equipped Finishing assembly cells under 5 Ton Mono Crane
- (2) - Ultra Sonic Polishers
Trucking
- (2) - Chevy Pickup Trucks - 4,000 Lbs
- (1) - 2026 Mack Anthem - 45,000 Lbs
- (1) - 2013 Freightliner - 30,000 Lbs
- (1) - 2015 Freightliner - 10,000 Lbs
